型号 | 电压 | 电流 | 输出功率 | 激振力 | 重量 | 机座号 | 了解更多 |
(V) | A最大(Y) | (KW) | (KN) | (KG) | |||

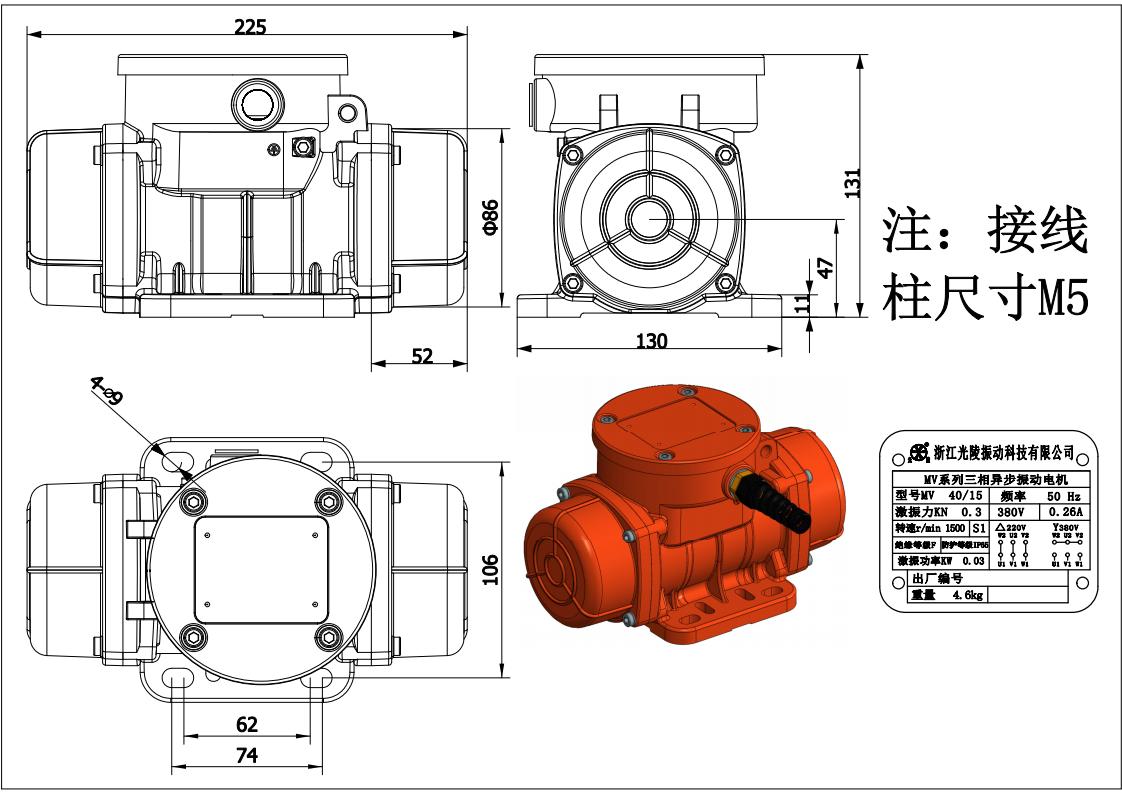

MV40/15 | 220/380 | 0.26 | 0.03 | 0.3 | 4.6 | size10 | |

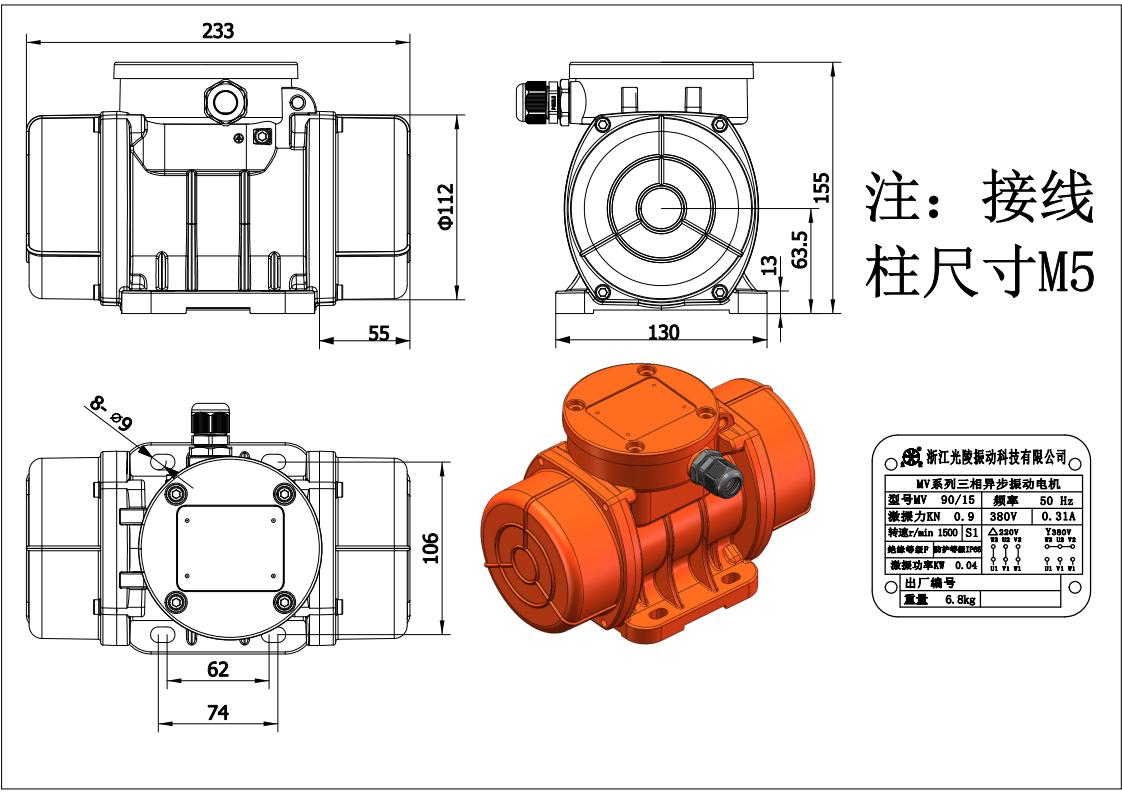

MV90/15 | 220/380 | 0.31 | 0.04 | 0.9 | 6.8 | size20 | |

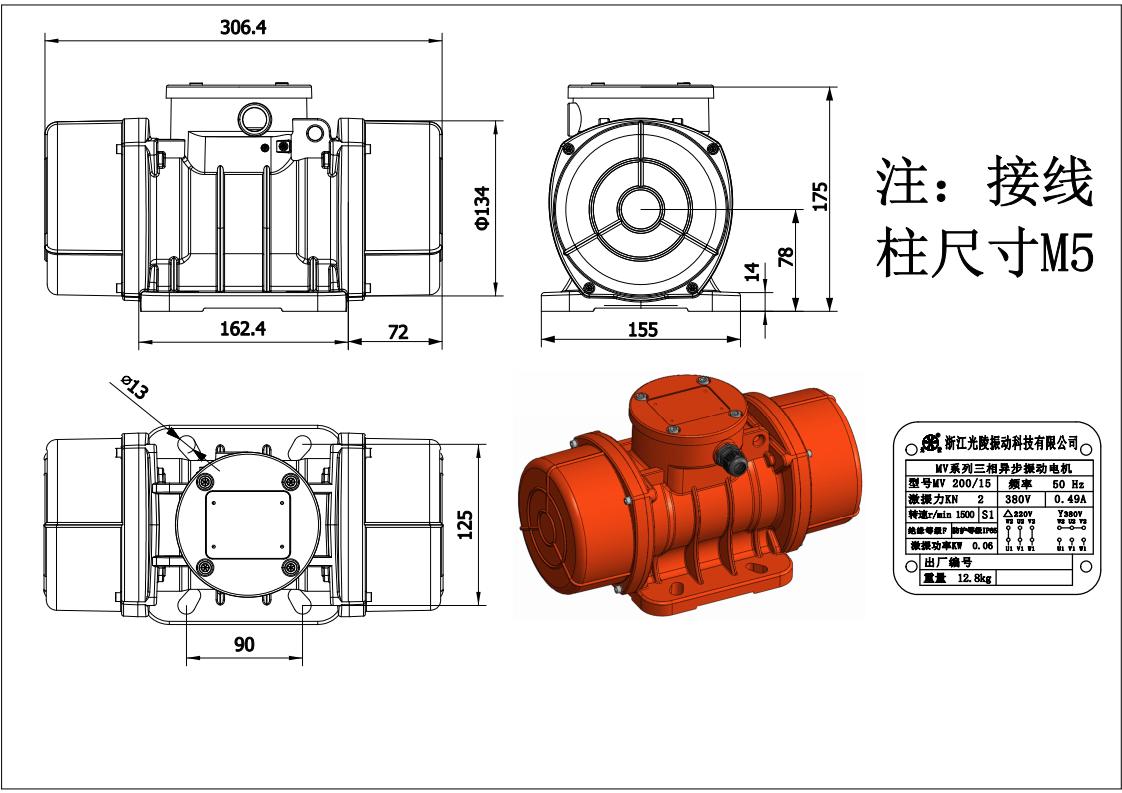

MV200/15 | 220/380 | 0.49 | 0.06 | 2 | 12.8 | size30 | |
MV250/15 | 220/380 | 0.54 | 0.07 | 2.5 | 12.9 | size30 | |
MV300/15 | 220/380 | 0.62 | 0.08 | 3 | 13.8 | size30 | |

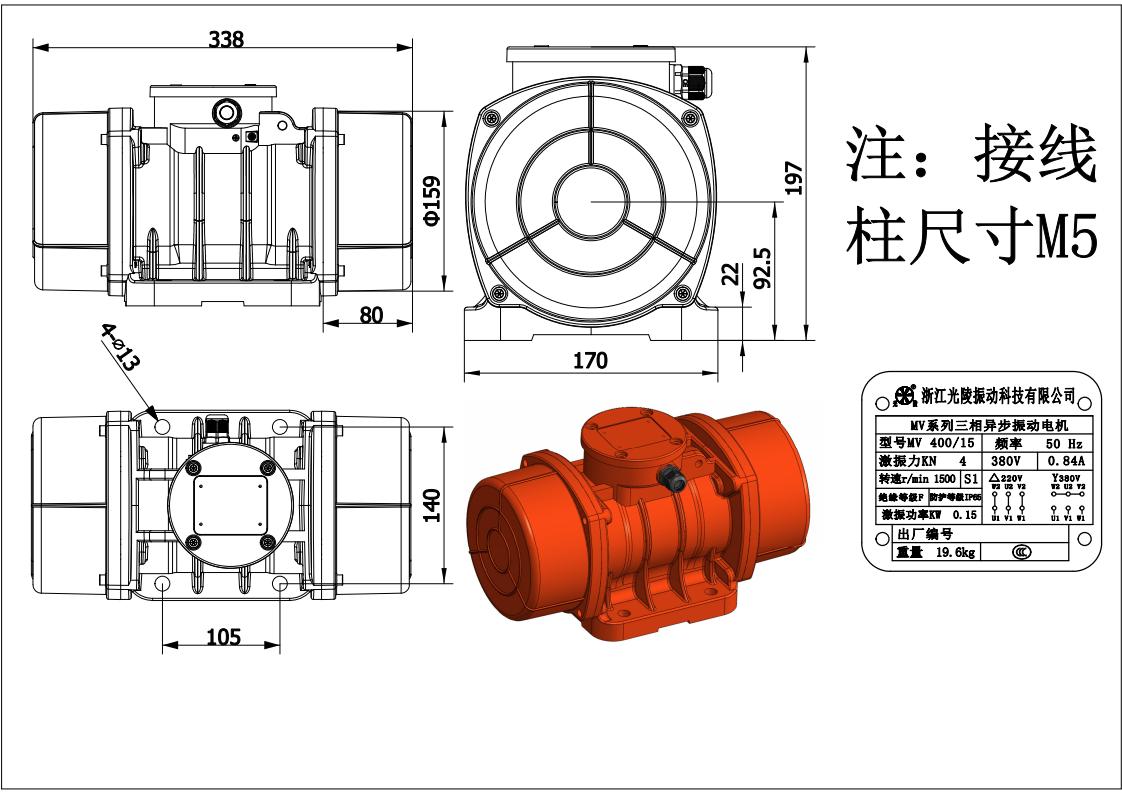

MV400/15 | 220/380 | 0.84 | 0.15 | 4 | 19.6 | size40 | |
MV500/15 | 220/380 | 1.06 | 0.25 | 5 | 21.0 | size40 | |

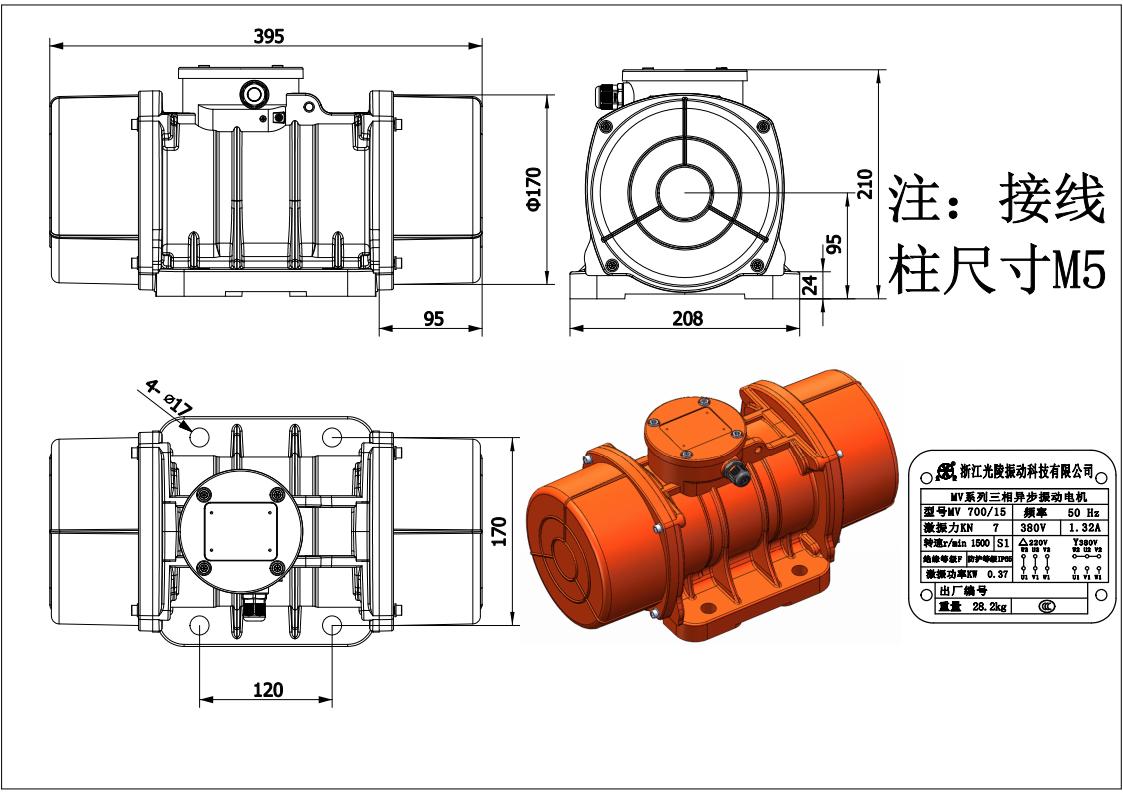

MV700/15 | 220/380 | 1.32 | 0.37 | 7 | 28.2 | size50 | |
MV800/15 | 220/380 | 1.36 | 0.40 | 8 | 29.1 | size50 | |

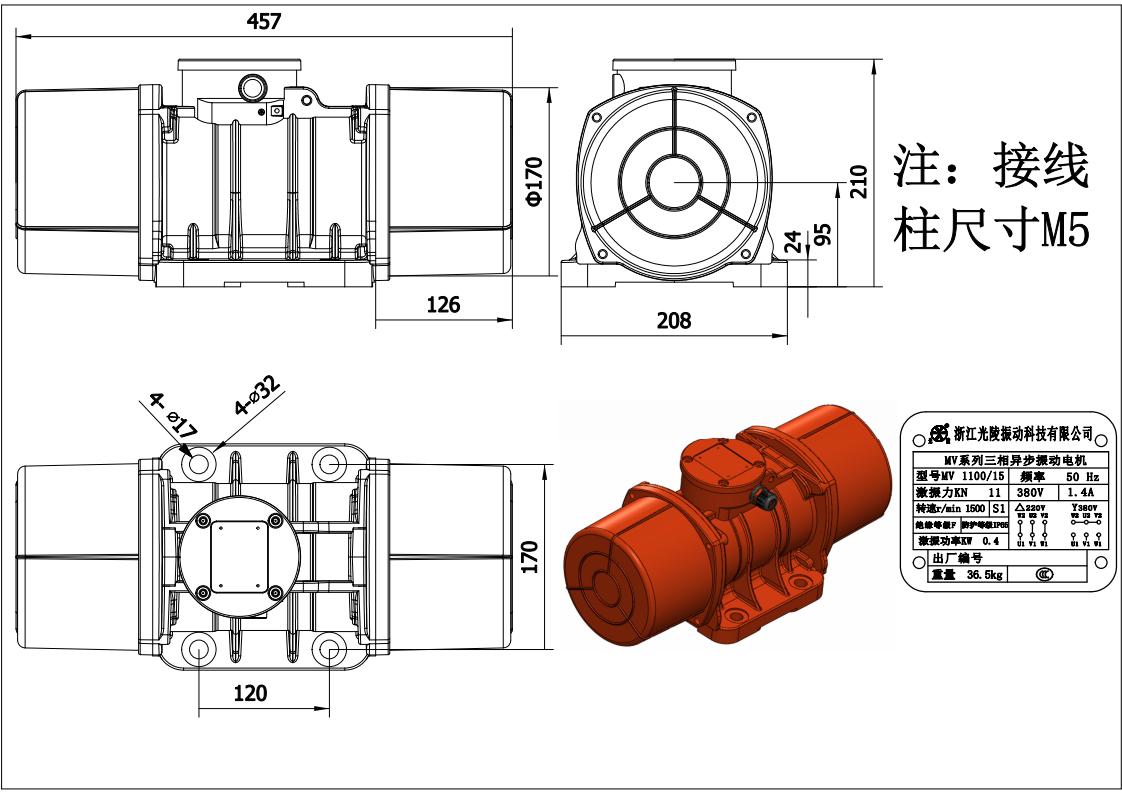

MV1100/15 | 220/380 | 1.4 | 0.40 | 11 | 36.5 | size50 | |

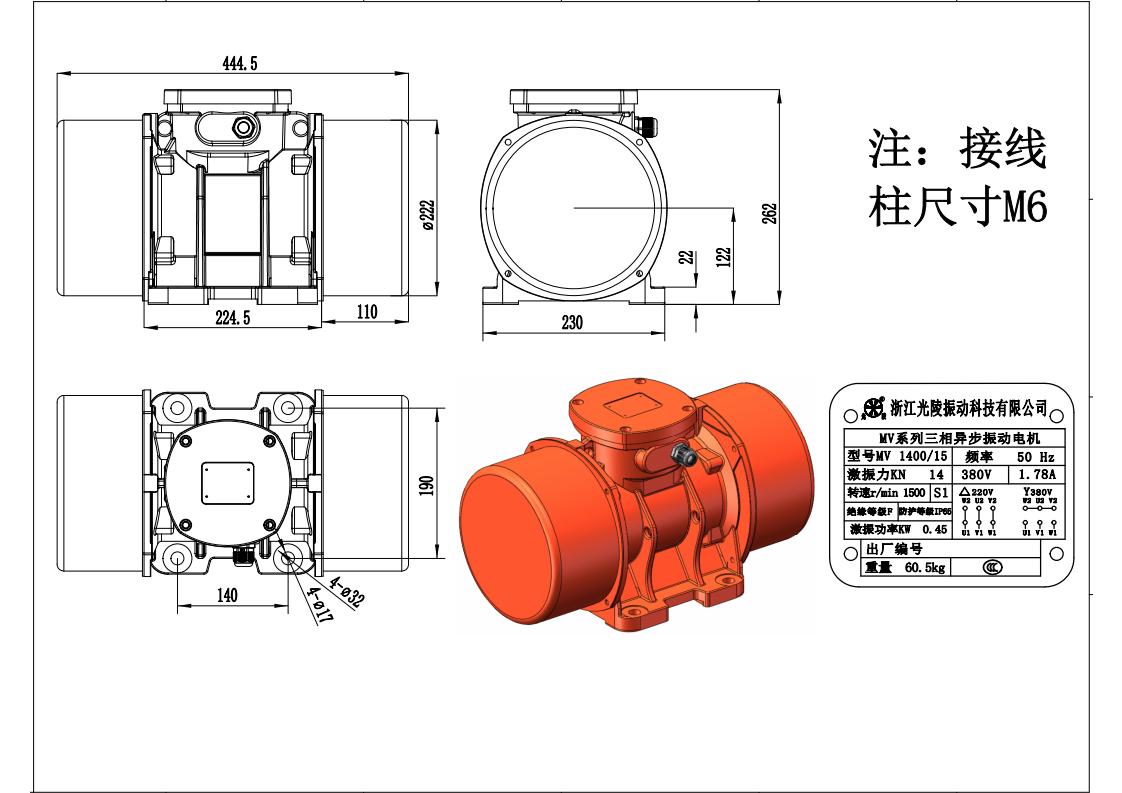

MV1400/15 | 220/380 | 1.78 | 0.45 | 14 | 60.5 | size60 | |

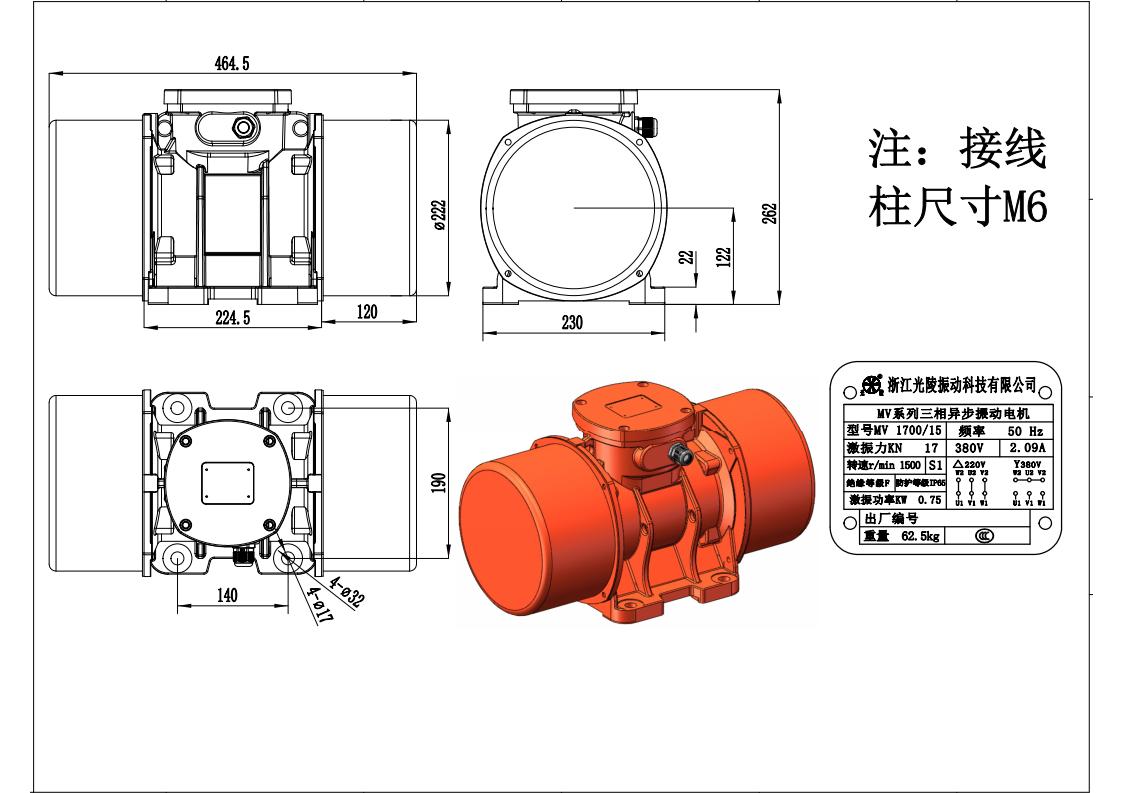

MV1700/15 | 220/380 | 2.09 | 0.75 | 17 | 62.5 | size60 | |

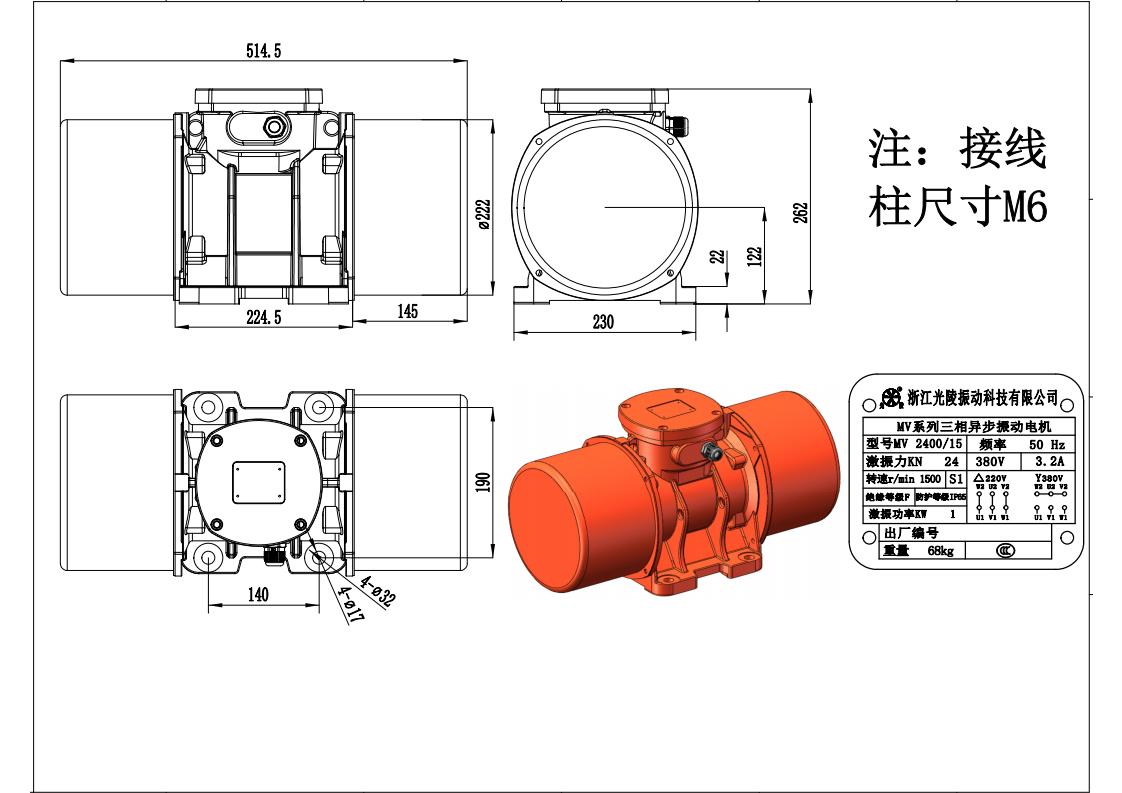

MV2400/15 | 220/380 | 3.2 | 1.00 | 24 | 68.0 | size60 | |

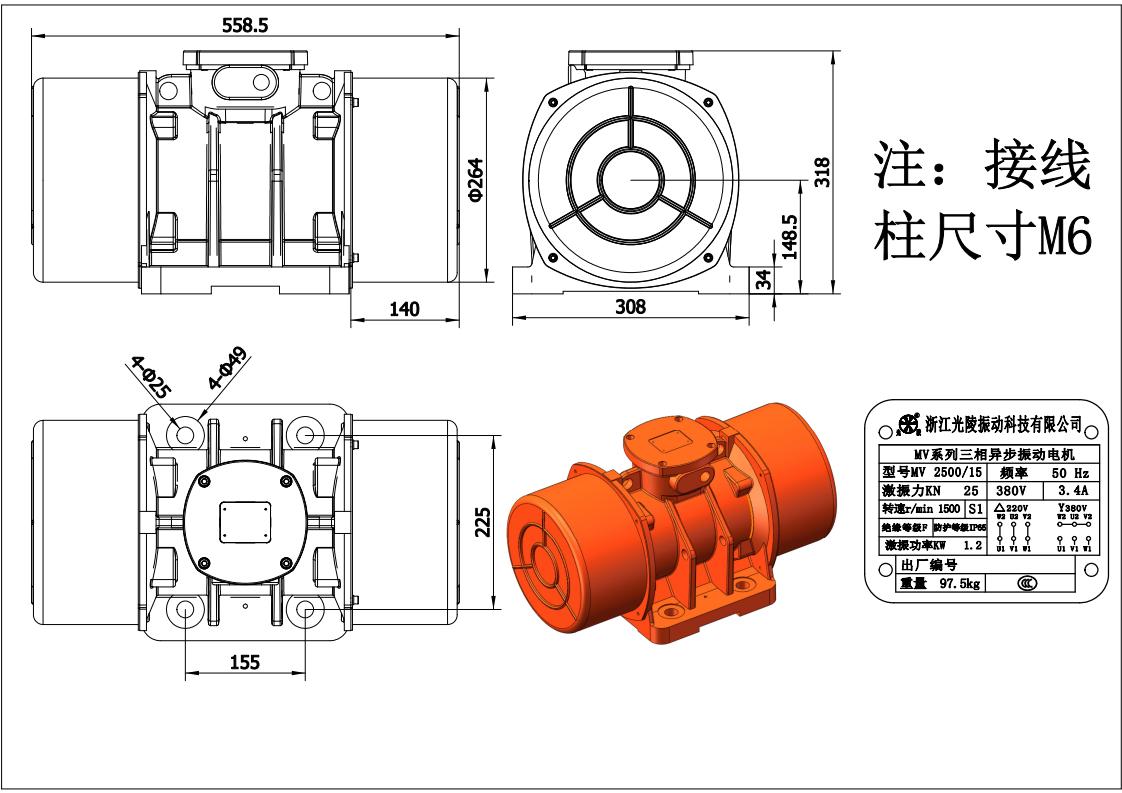

MV2500/15 | 220/380 | 3.4 | 1.20 | 25 | 97.5 | size70 |
|

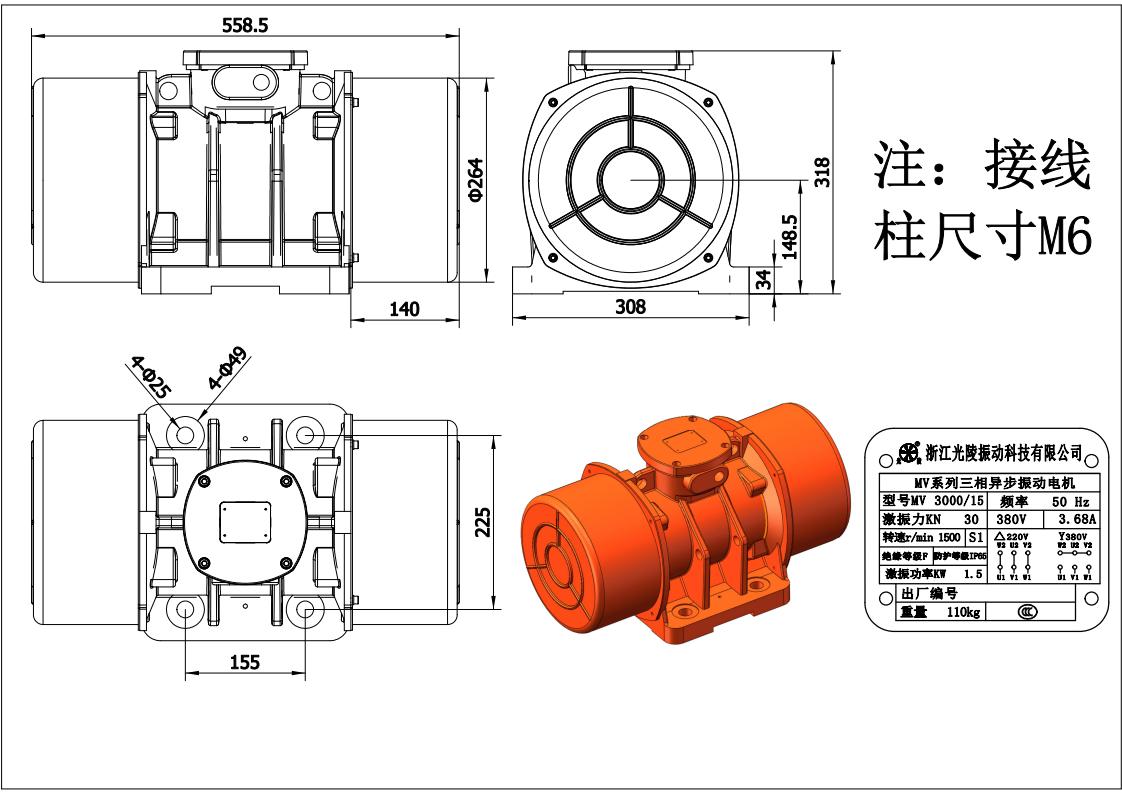

MV3000/15 | 220/380 | 3.68 | 1.50 | 30 | 110.0 | size70 |
|
MV3800/15 | 220/380 | 4.15 | 1.72 | 38 | 130.0 | size75 | |

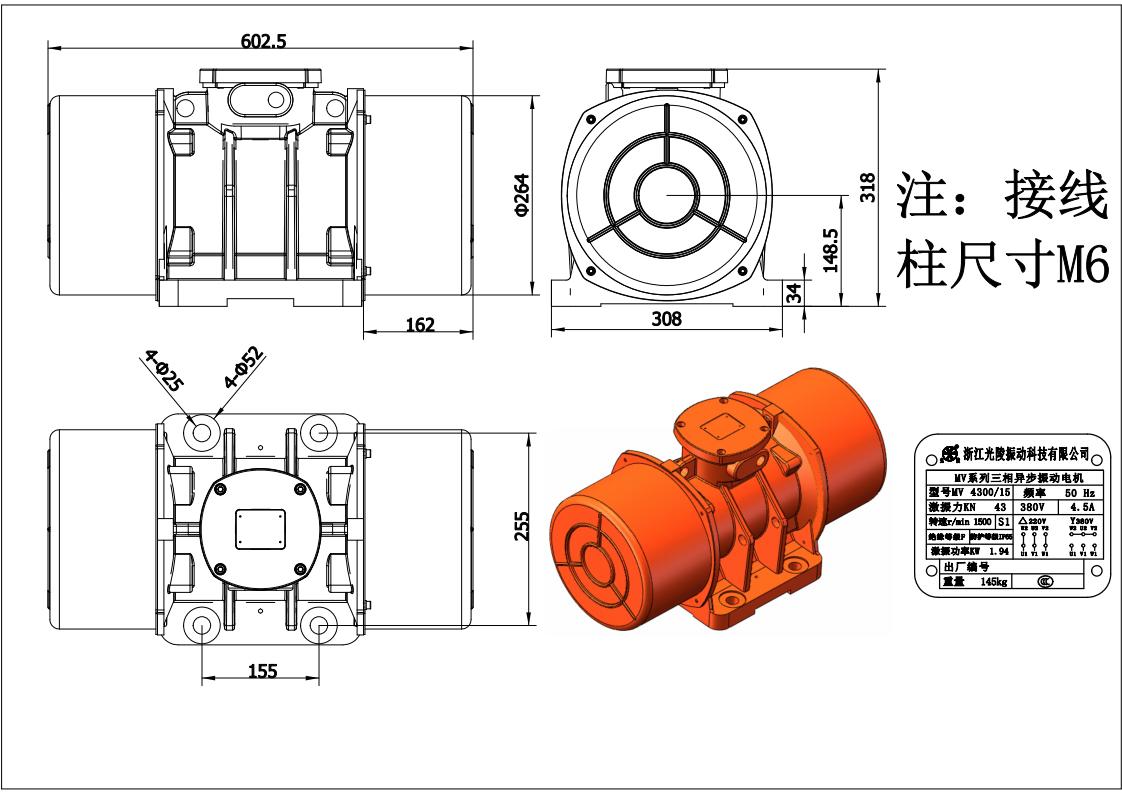

MV4300/15 | 220/380 | 4.5 | 1.94 | 43 | 145.0 | size75 | |

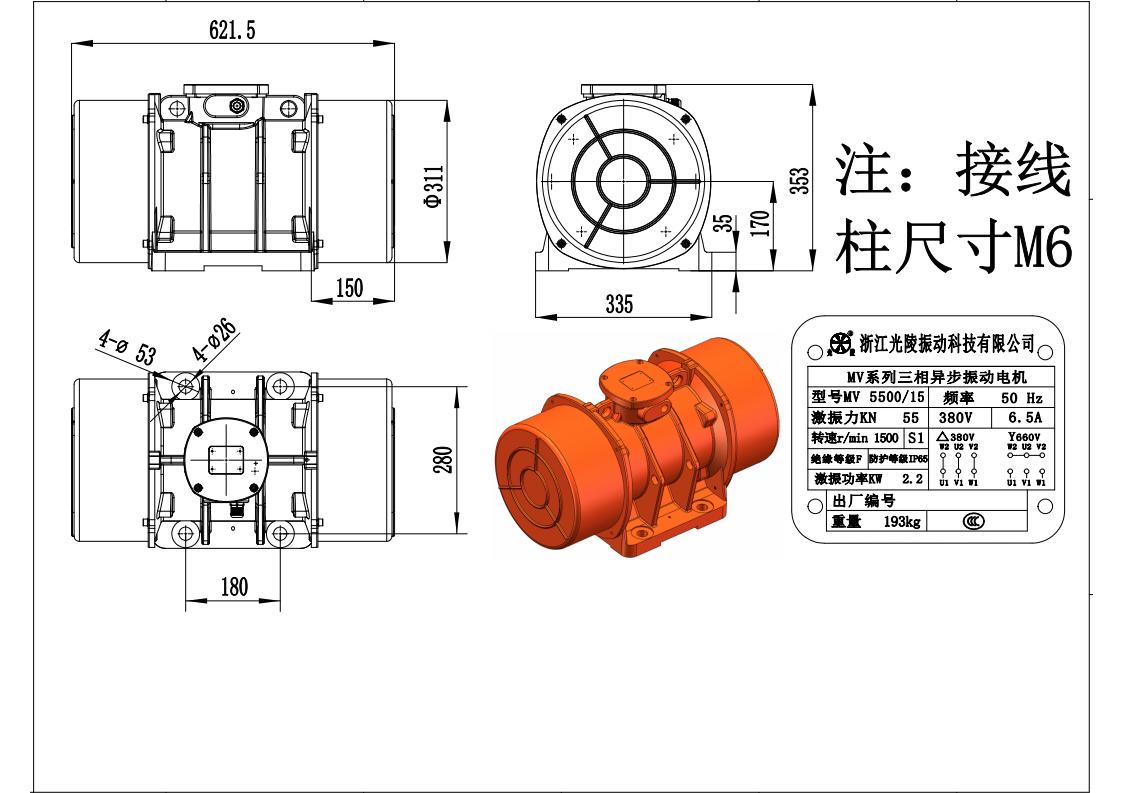

MV5500/15 | 380/660 | 6.5 | 2.2 | 55 | 193 | size80 | |

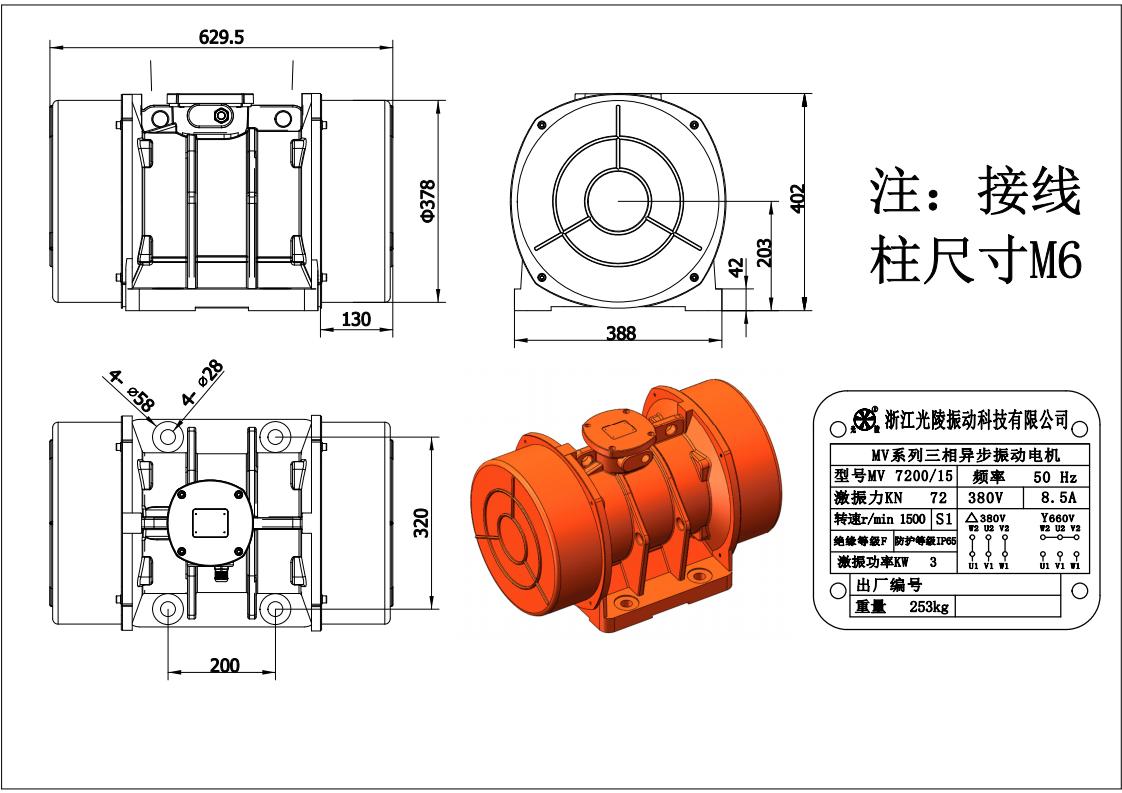

MV7200/15 | 380/660 | 8.5 | 3.0 | 72 | 253 | size85 | |

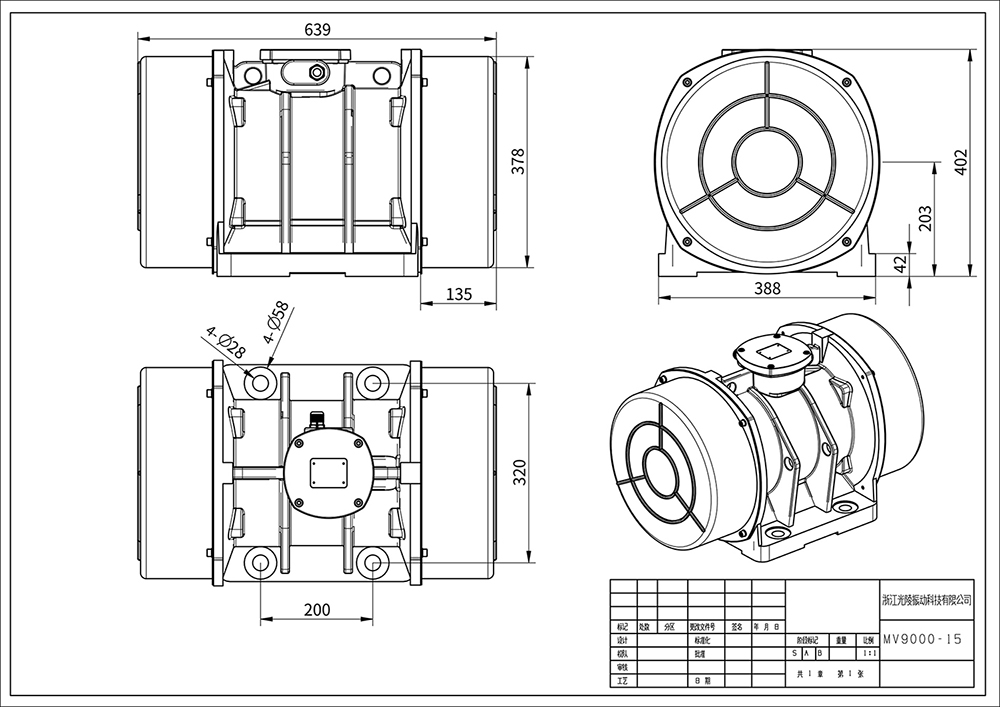

MV9000/15 | 380/660 | 13.4 | 5.8 | 90 | 269 | size85 | |

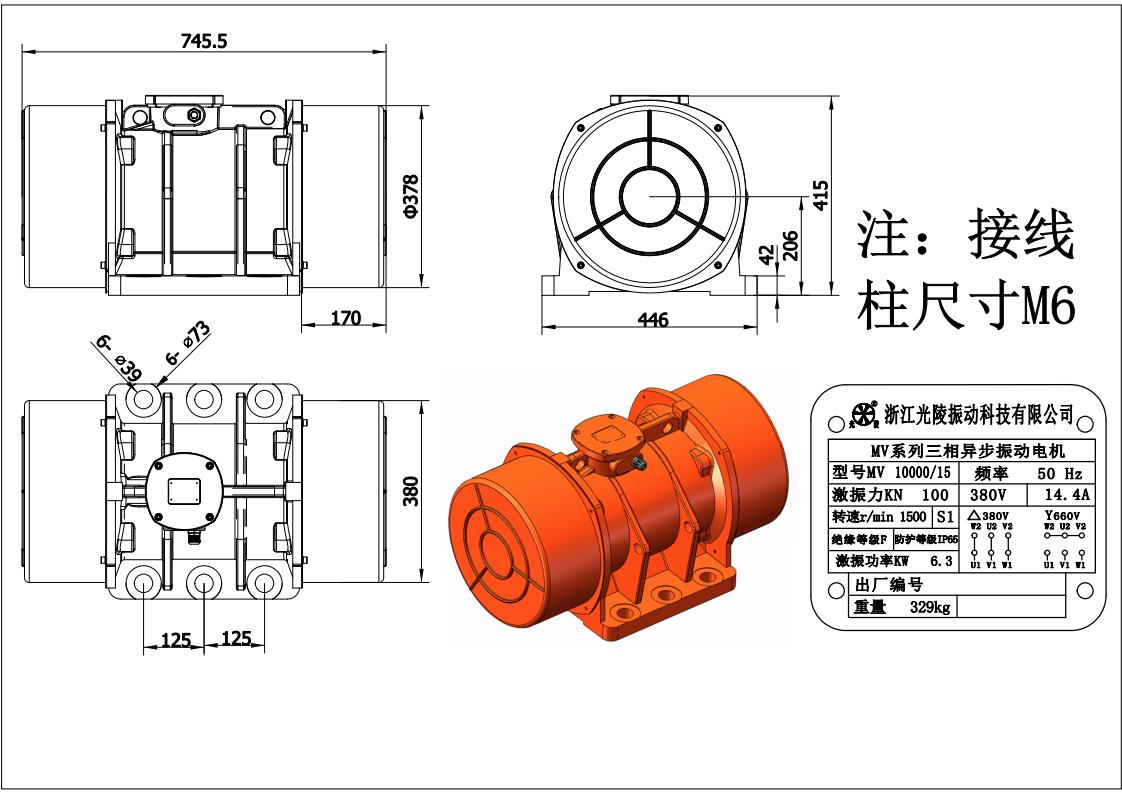

MV10000/15 | 380/660 | 14.4 | 6.3 | 100 | 329 | size90 | |

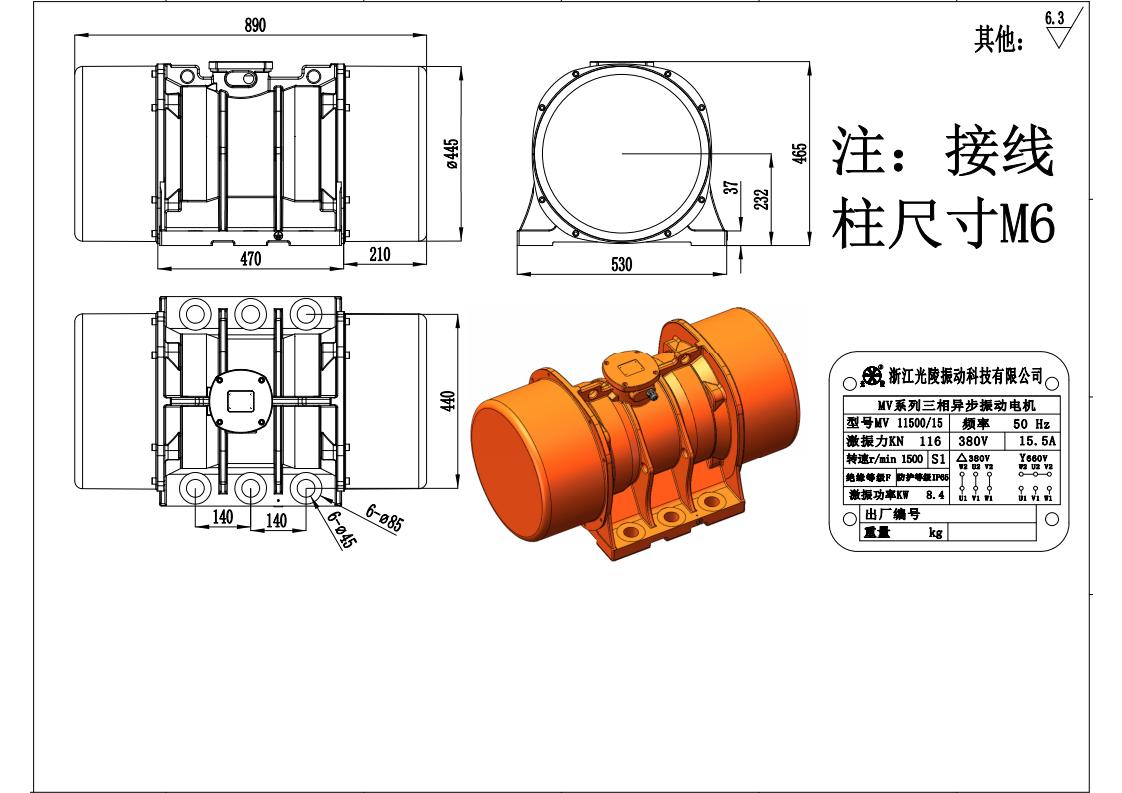

MV11500/15 | 380/660 | 15.5 | 8.4 | 116 | 445 | size100 |
|

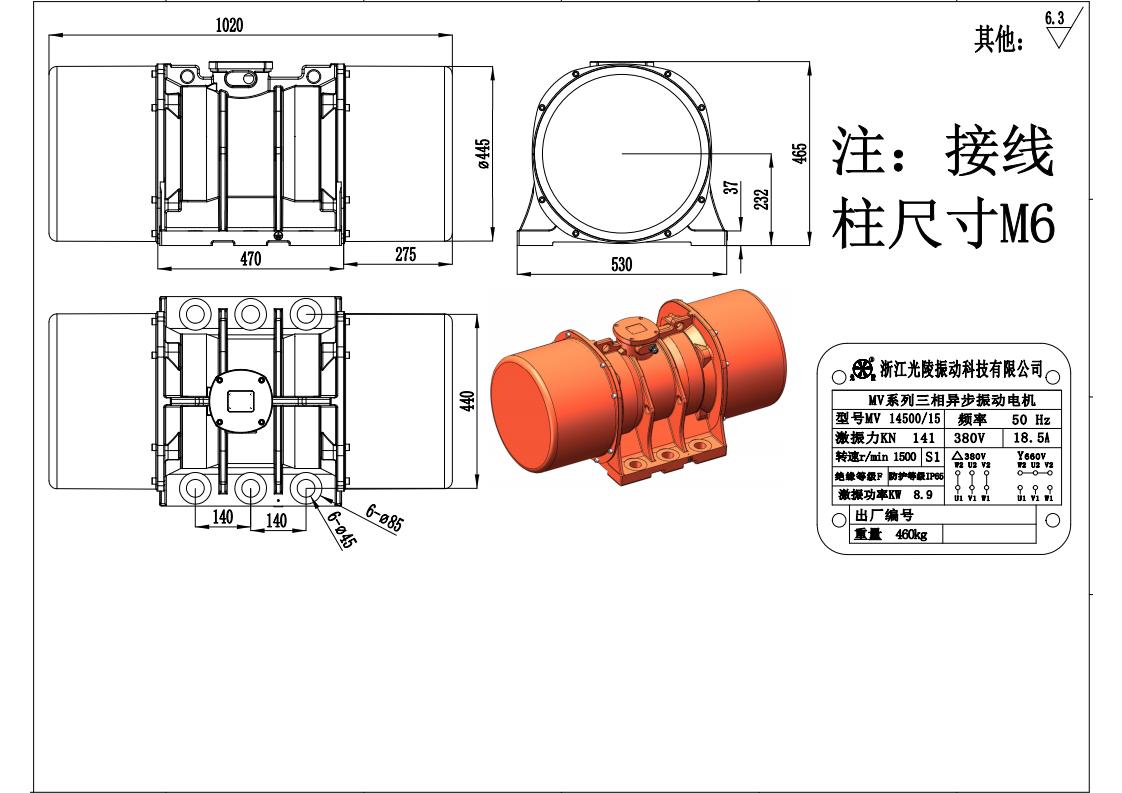

MV14500/15 | 380/660 | 18.5 | 8.9 | 141 | 460 | size100 |
|
